Raspberry Pi 4 Full Details and System Requirements

Raspberry Pi 4

Your tiny, dual-display, desktop computer and robot brains, smart home hub, media centre, networked AI core, factory controller, and much more.

Completely upgraded, re-engineered
Faster, more powerful

From $35

You’ll recognise the price along with the basic shape and size, so you can simply drop your new Raspberry Pi into your old projects for an upgrade; and as always, we’ve kept all our software backwards-compatible, so what you create on a Raspberry Pi 4 will work on any older models you own too.

Dual displays
4K output

We’ve listened to your feedback: with Raspberry Pi 4, you can run two monitors at once — and in 4K, too!

Your new desktop computer

The speed and performance of the new Raspberry Pi 4 is a step up from earlier models. For the first time, we’ve built a complete desktop experience. Whether you’re editing documents, browsing the web with a bunch of tabs open, juggling spreadsheets or drafting a presentation, you’ll find the experience smooth and very recognisable — but on a smaller, more energy-efficient and much more cost-effective machine.

Silent, energy-efficient

The fanless, energy-efficient Raspberry Pi runs silently and uses far less power than other computers

Fast networking

Raspberry Pi 4 comes with Gigabit Ethernet, along with onboard wireless networking and Bluetooth.

USB 3

Your new Raspberry Pi 4 has upgraded USB capacity: along with two USB 2 ports you’ll find two USB 3 ports, which can transfer data up to ten times faster.

Your choice of RAM

We’re making different variants of the Raspberry Pi 4 available, depending on how much RAM you need — 2GB, 4GB, or 8GB.

Raspberry Pi 4
Raspberry Pi 4

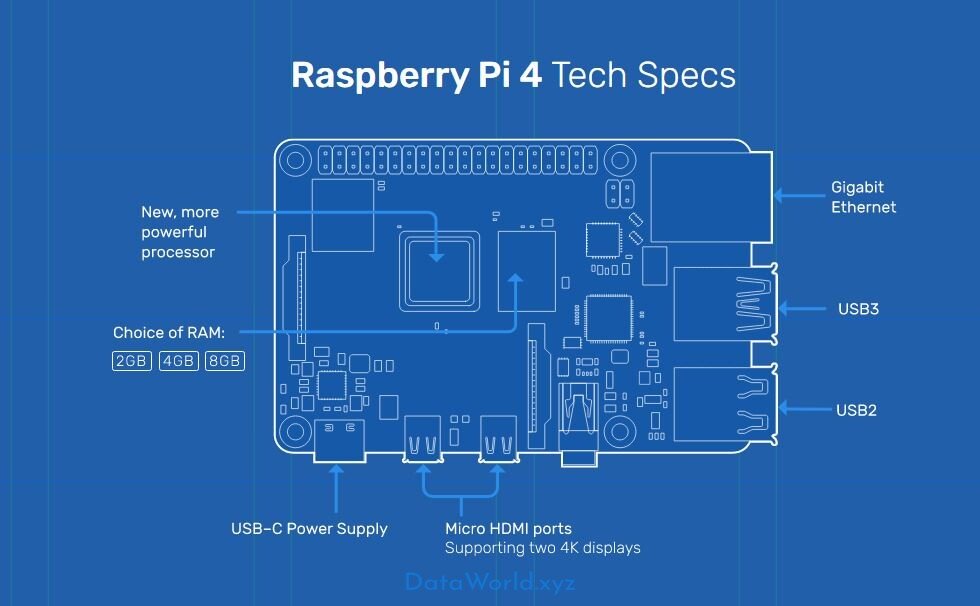

Raspberry Pi 4 Details and System Requirements

  • Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
  • 2GB, 4GB or 8GB LPDDR4-3200 SDRAM (depending on model)
  • 2.4 GHz and 5.0 GHz IEEE 802.11ac wireless, Bluetooth 5.0, BLE
  • Gigabit Ethernet
  • 2 USB 3.0 ports; 2 USB 2.0 ports.
  • Raspberry Pi standard 40 pin GPIO header (fully backwards compatible with previous boards)
  • 2 × micro-HDMI ports (up to 4kp60 supported)
  • 2-lane MIPI DSI display port
  • 2-lane MIPI CSI camera port
  • 4-pole stereo audio and composite video port
  • H.265 (4kp60 decode), H264 (1080p60 decode, 1080p30 encode)
  • OpenGL ES 3.0 graphics
  • Micro-SD card slot for loading operating system and data storage
  • 5V DC via USB-C connector (minimum 3A*)
  • 5V DC via GPIO header (minimum 3A*)
  • Power over Ethernet (PoE) enabled (requires separate PoE HAT)
  • Operating temperature: 0 – 50 degrees C ambient

* A good quality 2.5A power supply can be used if downstream USB peripherals consume less than 500mA in total.
