MAGNUS EN173080C Barebone

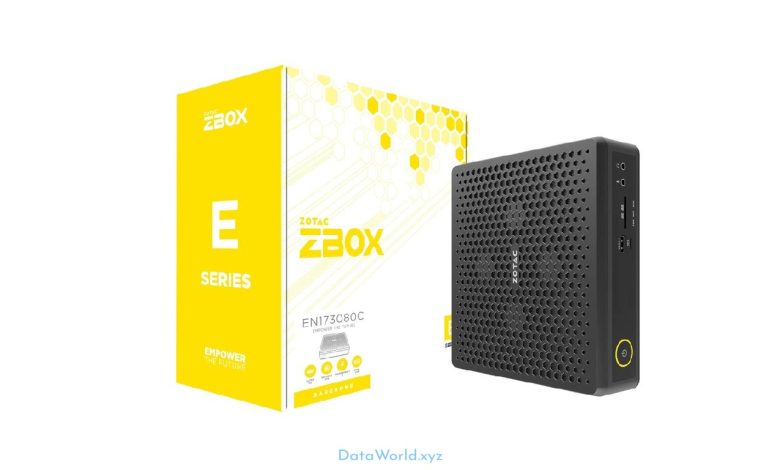

MAGNUS EN173080C Barebone ZBOX-EN173080C

Next-generation performance empowers the new MAGNUS EN Series. Built for gamers, creators and enthusiasts, the Mini PC features an 11th Gen Intel® Core™ i7 processor, NVIDIA GeForce RTX™ 3080 GPU and premium connectivity. An improved and powerful cooling solution is backed by a full honeycomb ventilation on top, striking the perfect balance between power and thermals in the most compact form factor. With ZBOX MAGNUS EN173080C, tackle demanding creative workloads, boost your productivity, and get ready for an immersive gaming experience.

– 11th Gen Intel Core i7 processor
– NVIDIA GeForce RTX 3080 Laptop GPU
– Up to 64GB DDR4-3200/2933 memory support
– Up to 4 displays support
– Fast data transfer with Thunderbolt 4 and USB 3.1
– Intel Optane Memory ready
– Killer 2.5Gbit LAN, Killer WiFi 6
– Windows 11 Ready



MAGNUS EN173080C Barebone PRODUCT SPECIFICATIONS

Computing System

  • Processor
    Intel Core i7-11800H (8-core 2.3 GHz, up to 4.6 GHz)
  • Chipset
    Intel, NVIDIA
  • System Memory
    2 x DDR4-3200/2933 SODIMM Slots (up to 64GB)

Graphics

  • Graphics Engine NVIDIA GeForce RTX 3080 Laptop GPU 16GB GDDR6 256-bit, up to 150W
  • Video Output
    2 x HDMI 2.1* (up to 7680×[email protected])
    2 x DisplayPort 1.4a (up to 7680×[email protected])
    Up to Quad Display Support
    *Ultra High Speed HDMI Cable is required to support 8K/60FPS or 4K/120FPS

Storage

  • Hard Drive 1 x 2.5-inch SATA 6.0 Gbps HDD/SSD bay
  • Mass Storage N/A
  • Optical Drive N/A
  • mSATA N/A
  • M.2 1 x M.2 PCIe x4 slot (2230, 2242, 2280), 1 x M.2 PCIe x4 / SATA SSD / Intel Optane memory slot (2230, 2242, 2280)
  • Card Reader 3-in-1 (SD/SDHC/SDXC)

I/O Ports

  • Audio Microphone, Headphone, HDMI
  • USB Port 5 x USB 3.1 GEN 2
  • LAN Dual LAN (Gigabit Ethernet, 2.5Gbps Ethernet)
  • Antenna Dual WiFI SMA connetor
  • Wifi WiFi 6 AX1650
  • Bluetooth Bluetooth 5
  • Legacy I/O N/A
  • CIR Infrared Port N/A
  • Thunderbolt 1 x Thunderbolt 4 (data only)
  • USB N/A
  • IDE N/A
  • VGA N/A

Mechanical

  • Kensington Lock Yes
  • LED Indicators Power, HDD, WiFi
  • Power Supply AC Adapter O/P: DC 19.5V/330W
  • Cooling system Fan + Heatsink
  • ZBOX Dimensions 210mm x 203mm x 62.2mm (8.27in x 7.99in x 2.45in)
  • Case Mounting None

Miscellaneous

  • Supported OS Windows 11 / 10 (64-bit) ready
  • Accessories
    2 x WiFi antenna
    AC Adapter
    Power Cord (bundled cable type dependent on region)
    Warranty Card
    Quick Install Guide
    USB drive with O/S driver
