Jupiter X300

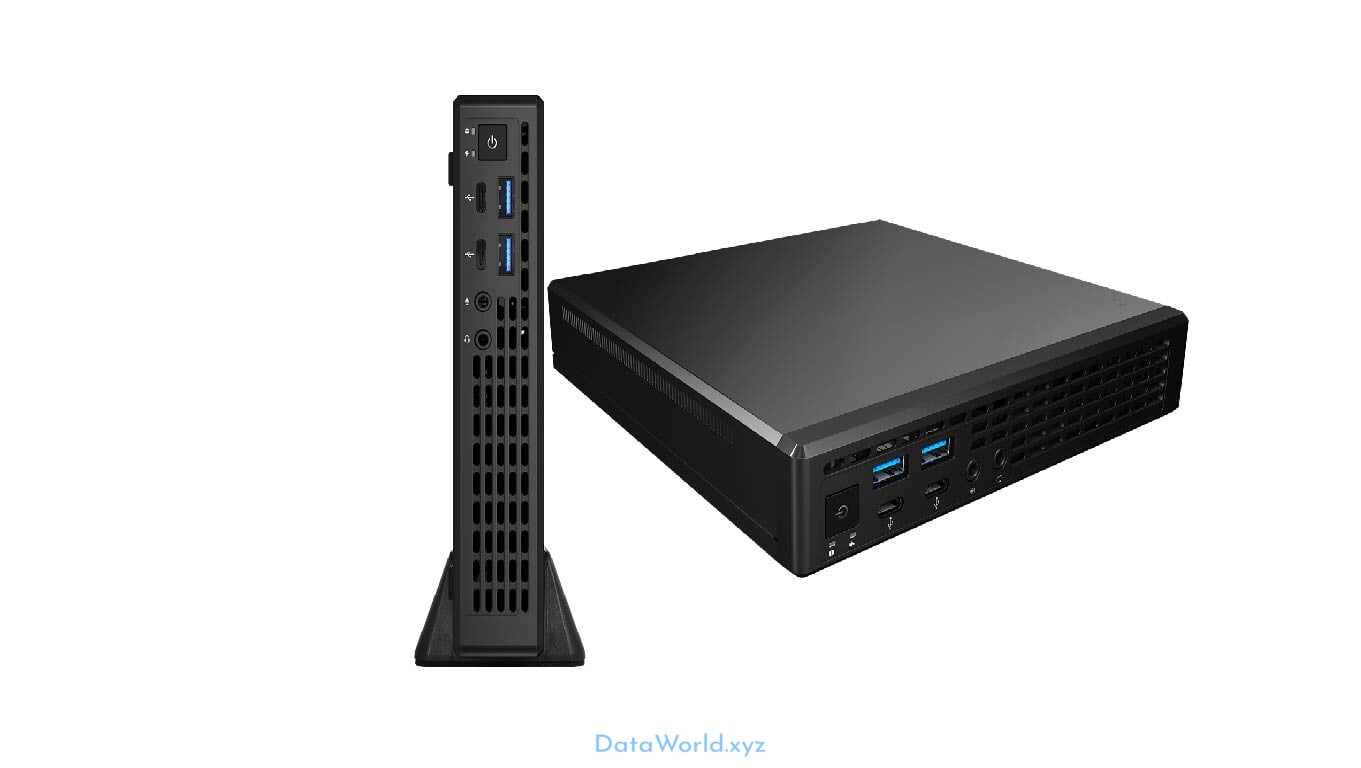

ASRock Launches 1L Jupiter X300 Mini PC

TAIPEI, Taiwan, January 26, 2021 – The leading global motherboard manufacturer, graphics card, and small form factor PC manufacturer, ASRock, proudly announces the compact Mini PC – Jupiter X300. This product supports AMD Ryzen™ 4000G Series processors and up to 64GB fast DDR4-3200MHz memory. This delivers decent performance for a wide range of home entertainment and business use. Jupiter X300 provides perfect expandability with only 1L of size, a PCIe Gen3 Ultra M.2(2280) SSD slot, a 2.5-inch SATA6Gb/s hard drive bay, and a M.2 Key-E slot for Wi-Fi module.

The connectivity of ASRock Jupiter X300 Mini PC includes dual USB Type-C ports, six USB Type-A connectors as well as three simultaneous display outputs which include DisplayPort, HDMI, and D-Sub. In this way, ASRock Jupiter X300 Mini PC offers users productivity and flexibility for any scenario. In addition, Jupiter X300 is also available with the model equipped with DASH LAN and TPM function for Enterprise Solutions. Price USD $299 and BDT ৳25,300.

Jupiter (X300) Specification

• CPU – Supports AMD AM4 Socket 65W/35W APUs
• Cooler – Integrated Cooling Solution
• Memory
  – Supports 2 x SO-DIMM DDR4, Max. 64GB (non-ECC)
  – Renoir APU – DDR4-3200MHz
  – Picasso/Ryzen APU – DDR4-2933MHz
• Chipset – AMD X300
• Graphics – Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU
• Graphics Output – 1 x HDMI (4K@60Hz),1 x DisplayPort (4K@60Hz), 1 x D-Sub*
  *Supports up to 3 displays simultaneously.
• Audio
  – 1 x Head Phone with Mic Jack
  – 1 x Mic-In
  – 1 x Speaker Out
  – 1 x 2W Speaker
  – Realtek ALC233
• Front USB – 2 x USB 3.2 Gen1 Type-C, 2 x USB 3.2 Gen1 Type-A
• Rear USB – 2 x USB 3.2 Gen1 Type-A, 2 x USB 2.0
• Storage
  – M.2_1: Type 2280 PCIe Gen3 x4 & SATA 6Gb
  – 1 x SATA 6Gb 2.5-inch 7mm/9.5mm Hard Drive
• LAN
  – 1 x RJ45 Gigabit LAN
  – Realtek RTL8111GN
• WLAN – M.2 Type 2230 Key-E
• Connectors
  – 1 x 4-Pin Fan Connector
  – 1 x DC-In Jack (Supports 19V Power Adapters)
  – 1 x Internal Speaker Header
  – 1 x 2-Pin Chassis Intrusion Header
• Power Unit – 90W/19V Adapter
• Dimension
  – Motherboard: 170 x 170 (Proprietary)
  – Barebones: 178 x 178 x 34 mm (1.0L)
• Security
  – Kensington lock
  – Key Lock
• OS – Microsoft^® Windows^® 10 64-bit compliant
• Certification – CE, FCC
• Remark
  – VESA: 75 x 75mm / 100 x 100 mm
  – Optional TPM 2.0 IC
